Specifications

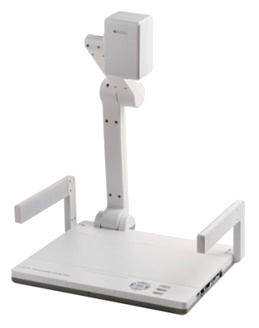

     Model       DS-1400
Pixels 3.2M Pixel 5.0M Pixel
Power DC5V 2A
Net Weight 2.4kg
Gross Weight 3kg
Work Size 390*340*518mm
Fold Size 360*331*91mm
Package Size 390*390*120mm
Display area 370mm*270mm
Camera 1/4''CMOS colorful
Zoom Optical 22 times,Digital 12 times
Definition ≥850 lines
Resolution XGASXGA 720PWXGA
Focus Automatic/Manual
Aperture Automatic/Manual
White balance Automatic
Image processing functions Positive/ Negative,Colorful/ Black-White,Phote/Text,Image split,Inverse(90°),Brightness adjustment,Image mirror,Image freeze
Save Max 32 images instantly save
Lens Turntable Angle Vertical 330°
Assistant light LED
Back light LED
Input Video*1,Audio*3,MIC*1,RGB*2,S*1
Output Video*1,Audio*1,RGB*2,S*1
RS232 *1
USB connect pc *2
Operating Keyboard,Remote controller
Operating temperature 0-40
Warranty  1 year
Certification CCC,CE,FCC,ROHS
