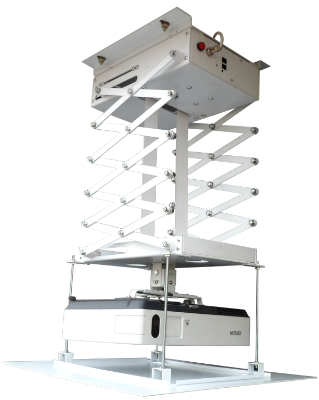

SX Series Projector Lift

  • Silent

                Driven by Synchronous Motor



  • Total Control

                RF remote control, plus Central Control and 12V trigger.



  • Safe

                Emergency stop to isolate all input signal for safety maintenance



  • Adjustable

                Come with universal joint projector mount for angle adjustment

User Manual

Model

SX080

SX100

SX150

SX200

Min. Size of lift(Fold up),mm

350x316x420(L1)

350X316X440(L1)

350X316X480(L1)

350X316X530(L1)

Max. Size of lift(Extended),mm

350x316x1290(L)

350X316X1525(L)

350X316X1995(L)

350X316X2700(L)

Maximum Travel, mm

800

1000

1500

2000

Travel Duration, sec

25 sec

32 sec

48 sec

64 sec

Minimum distance for decor ceiling, mm

440mm

460mm

500mm

550mm

Maximum Projector Dimension, mm

360 x 360 x 150mm

Bottom Plate size, mm

500x500

Maximum Loading Capacity, kg

15 kg

Rated voltage, V

220-240V

Power consumption, W

60W

Overload Protection

Fuse

Motor

SYNCHRONOUS MOTOR

Control Method

RF/Central Control/12V Trigger/panel

Limit Adjustment

By 2 x Limit Switch

Safety Protection

Emergency Stop Button

Tilt

±22.5°

Roll

±15°

Color

White

Packing Dimension, mm

530x530x260

530x530x260

530x530x300

530x530x350

Net Weight, kg

18.0 kg

18.5 kg

19.5 kg

21.0 kg

Gross Weight, kg

19.5 kg

20.0 kg

21.0 kg

22.5 kg
