Manto Eco-line Manual

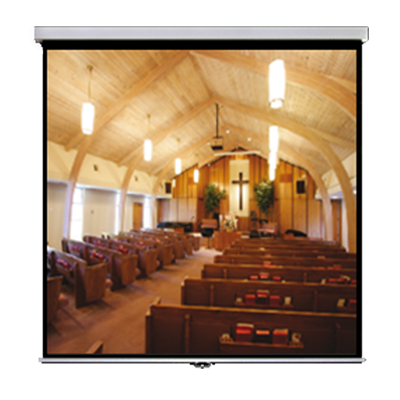

Manto Eco-line Manual Screen


Features:-
  • Self lock system for quick lock and release
  • Powder coated white square steel case
  • Triangular slat bar retracts into the housing for a clean finish
  • Plastic end caps with holes for wall or ceiling installation

User Manual

Specifications

Product Code

Screen Size

Viewing Area(mm)

Border(mm)

Product Dimension

Packing Dimension LxWxH(mm)

N.W(kg)

G.W. (kg)

(HxW, inches)

Height

Width

Upper / Lower / Side

LxWxH(mm)

1:1 Square Format

MEW050050

70"(50"x50")

1270

1270

40/30/30

1430x67x75

1492x135x130

5.1

5.8

MEW060060

85"(60"x60")

1524

1524

40/30/30

1684x67x75

1746x135x130

6.1

6.9

MEW070070

100"(70"x70")

1778

1778

40/30/30

1938x67x75

2000x135x130

7.2

8.1

MEW080080

113"(80"x80")

2032

2032

40/40/40

2212x67x75

2274x135x130

8.4

9.5

MEW096096

136"(96"x96")

2358

2358

40/40/40

2540x67x75

2602x135x130

9.9

11.2

4:3 Video Format

MEW050067

84"(50"x67")

1280

1707

40/30/30

1867x67x75

1929x135x130

6.5

7.4

MEW060080

100"(60"x80")

1524

2032

40/40/40

2212x67x75

2274x135x130

7.8

8.9

MEW072096

120"(72"x96")

1769

2358

40/40/40

2540x67x75

2602x135x130

9.2

10.5

16:9 HDTV Format

MEW040070

81"(40"x70")

1000

1778

450/30/30

1938x67x75

2000x135x130

6.9

7.8

MEW045080

92"(45"x80")

1143

2032

450/40/40

2212x67x75

2274x135x130

7.9

9.0

MEW049087

100"(49"x87")

1243

2210

450/40/40

2390x67x75

2452x135x130

7.9

9.1

MEW054096

110"(54"x96")

1326

2358

450/40/40

2540x67x75

2602x135x130

9.2

10.5

16:10 Wide Format

MEW042067

79"(42"x67")

1064

1702

450/30/30

1862x67x75

1924x135x130

6.7

7.6

MEW050080

94"(50"x80")

1270

2032

450/40/40

2212x67x75

2274x135x130

8.0

9.1

MEW053085

100"(53"x85")

1349

2159

450/40/40

2339x67x75

2401x135x130

8.6

9.7

MEW058093

110"(58"x93")

1476

2362

450/40/40

2542x67x75

2604x135x130

9.4

10.7
